ewa-marine 3D-L underwater pocket camera housing
ewa-marine 3D-L large underwater pocket camera housing
ewa-marine rated to a dive depth of up to 10m / 30ft

ewa-marine 3D-L

Generic underwater housing for large, pocket cameras

order code: 3D-L

The new 3D-L is manufactured from double laminated PVC and has an optical glass port. It is rated for dives of up to 10 meters / 30ft depth.

Perfect for snorkeling, shallow diving, sandy, dusty, humidity or foul weather conditions. This housing will give your camera the best possible protection whilst being fully operable.

It has a pair of non-corrosive and seawater resistant clamping rails which fit together for perfect sealing. They tighten by means of two screw knobs.

The current, updated version of the 3D-L features the all new ewa-marine hard front port assembly.



Application and alternative products



The 3D-L is a practical, "all-round" housing for medium sized, compact digital cameras that is primarily intended the be used while swimming, snorkeling and other, general water sports.

Check your camera to see if it is smaller or equal to the following to ensure a safe fit into the 3D-Scompact-camera

H = 8 cm (3 ¼ “)
D = 5 cm (2“)
L = 18 cm (7 “)
Z = 3,2 cm (1 ¼ “)

If your camera is larger than the above dimensions, the following products offer a better solution:

  • 3D-S: Small compact cameras.
  • 3D-M: Medium sized compact cameras.



Product Information and Technical Details



This underwater housing is designed specifically for small, compact digital pocket cameras, like those from the Canon Powershot, Nikon Coolpix, Sony DSC-W Series and similar, small cameras from other manufacturers.

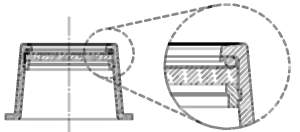

In order to allow the sensitive zoom lenses of modern compact, digital cameras to operate without any interference, we have developed our new, hard front port assembly. This new front port is welded directly onto the ewa-marine housing thus ensuring a safe and extremely strong bond between the housing and the port. Naturally, the new, hard port assembly also includes an optical grade front port to allow distortion free, high quality photography with the camera inside the housing.

ewa-marine compact camera front port tubus

As is the case with all ewa-marine housings, the 3D-L has a pair of non-corrosive and seawater resistant clamping rails which fit together for perfect sealing.They tighten by means of three screw knobs. There is also the practical, adjustable carry strap on the clamping rail.

Technical Specification:

Width 165 mm   6 1/2"
Height 87 mm 3 3/8"
Depth 33 mm 1 1/3"
     depth incl. lens tubus   75 mm   3"
Diameter front glass 40 mm 1 1/2"




What's in the box



In Addition to your housing and closing rail you will get the following with your new ewa-marine:

  • manual for ewa-marine compact camera housings
  • special foam padding
  • sachet of Camera-Dry silica-gel



Spare parts



Should you require a lost or broken part, please contact us via mail:

  • 3D-L closing rail
  • set of 3 knurled nuts for closing rail
  • puncture repair (has to be repaired in factory)



Fits the following cameras



Canon:
PowerShot A1000 IS
PowerShot A1100
PowerShot A2000 IS
PowerShot A2100
Powershot A490
Powershot A495
PowerShot A510
PowerShot A520
PowerShot A530
PowerShot A540
PowerShot A550
PowerShot A560
PowerShot A570 IS
PowerShot A580
PowerShot A590
PowerShot A60
PowerShot A610
PowerShot A620
PowerShot A630
PowerShot A640
PowerShot A650
PowerShot A70
PowerShot A700
PowerShot A710
PowerShot A720 IS
PowerShot A75
PowerShot A80
PowerShot A85
PowerShot A95
Powershot D10
PowerShot E1
PowerShot G6
PowerShot G7
PowerShot G9
Powershot S90
Powershot S90
Powershot SX 130 IS
Powershot SX 220 HS
Powershot SX 230 HS
Powershot SX100
Powershot SX100
Powershot SX110 IS
Powershot SX110 IS
Powershot SX120 IS
Powershot SX130 IS
Powershot SX150 IS
Powershot SX210 IS
Powershot SX220 HS
PowerShot SX230 HS
Powershot SX270 HS
Powershot SX280
Powershot SX280 HS

Casio:
Exilim EX-FH100
Exilim EX-H15

Fuji:
Finepix F850
Finepix F900
Fujifilm XF1

Hasselblad:
Hasselblad Stellar

Kodak:
EasyShare C763
EasyShare C813
EasyShare Z1085
EasyShare Z1275
EasyShare Z1285
EasyShare Z1485
EasyShare Z915

Leica:
C-LUX 1
D-LUX 2
D-LUX 3
D-LUX 4
D-LUX 5
D-LUX 6
V-LUX 40
V-LUX 5
X2

Nikon:
Coolpix A
Coolpix L620
Coolpix P330
Coolpix P50
Coolpix P5000
Coolpix P5100
Coolpix P60
Coolpix P6000

Olympus:
SH-25MR
Stylus SZ-10
Stylus SZ-15
Stylus SZ-16
Stylus SZ-20
Stylus SZ-30MR
XZ-1

Panasonic:
DMC-LX1
DMC-LX2
DMC-LX3
DMC-LX7
DMC-TZ22
DMC-TZ25
DMC-TZ31
DMC-TZ36
DMC-TZ41
DMC-TZ61

Ricoh:
GR
RR770

Rollei:
Powerflex 240 HD

Samsung:
EX1
EX1
Galaxy camera
WB210
WB500
WB550
WB600
WB650
WP700

Sony:
DSC-H55
DSC-H70
DSC-HX5
DSC-HX50
DSC-HX50V
DSC-HX5V
DSC-HX60
DSC-HX60V
DSC-HX80
DSC-HX90
DSC-HX9V
DSC-RX100
DSC-RX100 II
DSC-RX100 M2
DSC-V1
DSC-W370
