ewa-marine A-BC underwater housing for Blackmagic Pocket Cinema Camera 4K
ewa-marine A-BC underwater housing for Blackmagic Pocket Cinema Camera 4K
ewa-marine rated to a dive depth of up to 20m / 60ft

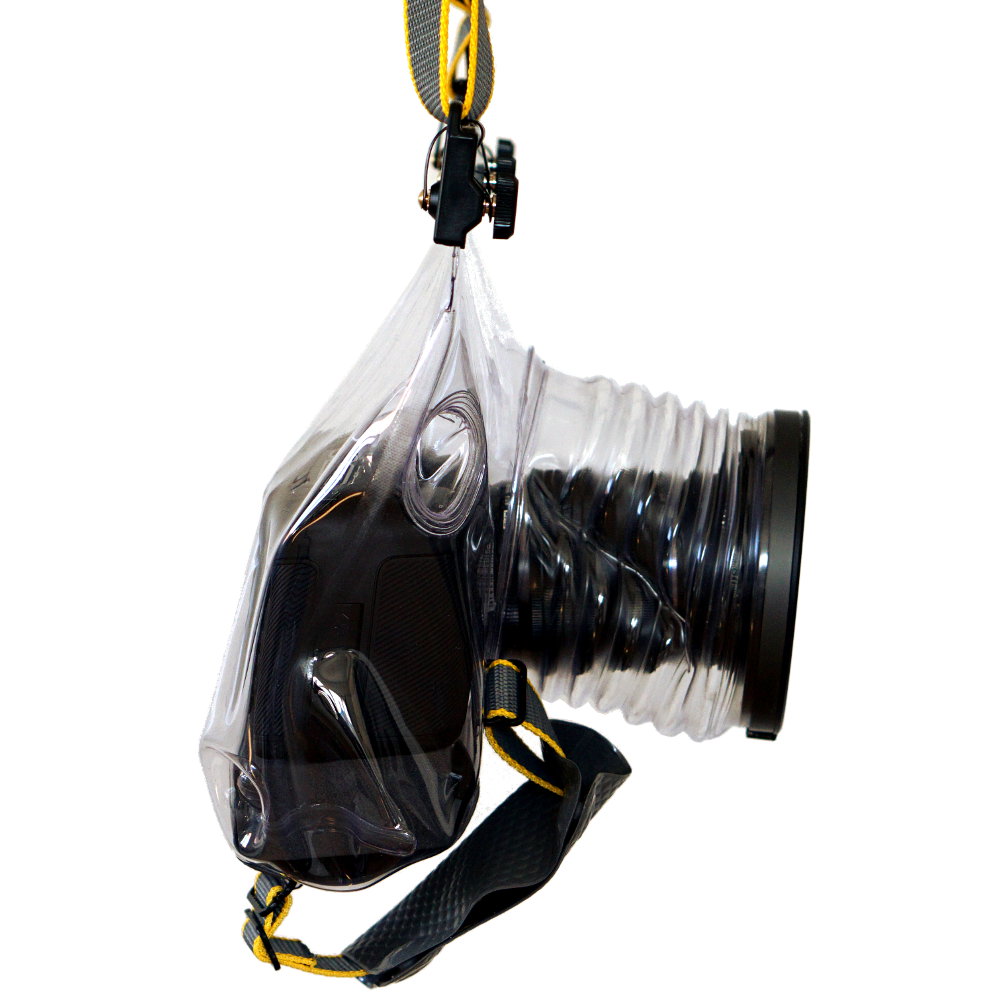

ewa-marine A-BC

Underwater housing for the Blackmagic Pocket Cinema Camera

order code: A-BC

The revolutionary new Blackmagic Pocket Cinema Camera 4K is the camera you’ve been asking for! It features an all new handheld design that puts the latest advanced digital film technology into the palm of your hand! The ewa-marine A-BC housing was specifically designed for all of these Blackmagic Pocket Cinema Cameras. The housing is rated up to 20 meter depth / 60feet.

Designed specifically for these cameras the housing A-BC is manufactured from double laminated PVC film and has an integrated, optically neutral flat glass port and comes with special ewa-marine CA adapters for connect the lens to this port via the lense's filter thread.

Perfect for snorkeling or shallow diving, sandy, dusty, humid or foul weather conditions this housing will give your camera the best possible protection whilst being fully operable.

It has a pair of non-corrosive and seawater resistant clamping rails which fit together for perfect sealing. They tighten by means of knurled thumb screw knobs.

It is supplied in a yellow carry-case.

The A-BC housing is currently limited to the following lens specifications:

- For lenses/camera combinations with a maximum length of 190mm / 7.5 inches

- For lenses with a maximum filter diameter of 82mm

If you want to use lenses with a larger filter diameter than 82mm, ie. 95mm, please note our information for custom housings.

Designed specifically for the Blackmagic Pocket Cinema Camera 4K the ewa-marine A-BC underwater housing is manufactured from double laminated PVC film and has an integrated, optically neutral flat glass port. With this housing you will receive a set of adapters that fit the filter threads of the most popular lenses on the market today. By means of this adapter the camera is then docked into the housings front port, ensuring that the lens remains parallel and centered behind the front of the lens. Just as if it were a clear, neutral optical filter.

It has a pair of non-corrosive and seawater resistant clamping rails which fit together for perfect sealing.They tighten by means of four screw knobs. There is also the practical, adjustable carry strap on the clamping rail.

Overall Width =21 cm  (8 1/3 inches)
Length of floor section=9 cm(3 1/2 inches)
Length of lens-tubus=5 - 12 cm(2 - 5 inches)
Total length =14 - 21 cm(5 1/2 - 8 1/2 inches)
max. Filter Diameter =82 mm
Weight =0,7 kg(1.5 lbs)

Actually, it's not in a box at all. We sell this unit in a handy, black, nylon carry bag. This bag is ideal to store and transport your ewa-marine housing, it also helps reduce unnecessary packaging-waste and as such is part of our amain to help the environment.

In Addition to your housing and closing rail you will get the following with your new ewa-marine:

  • yellow carry-case
  • manual for ewa-marine video housings
  • sachet of Camera-Dry silica-gel
  • foam padding
  • C-A82 adapter for 82mm filter thread
  • step-up ring RA77-82
  • step-up ring RA72-77

Should you require a lost or broken part, please contact us via mail:

  • 280/3 closing rail
  • set of 3 knurled nuts for closing rail
  • SF100 front port replacement (has to be replaced in factory)
  • puncture repair (has to be repaired in factory)
  • yellow nylon bag large
