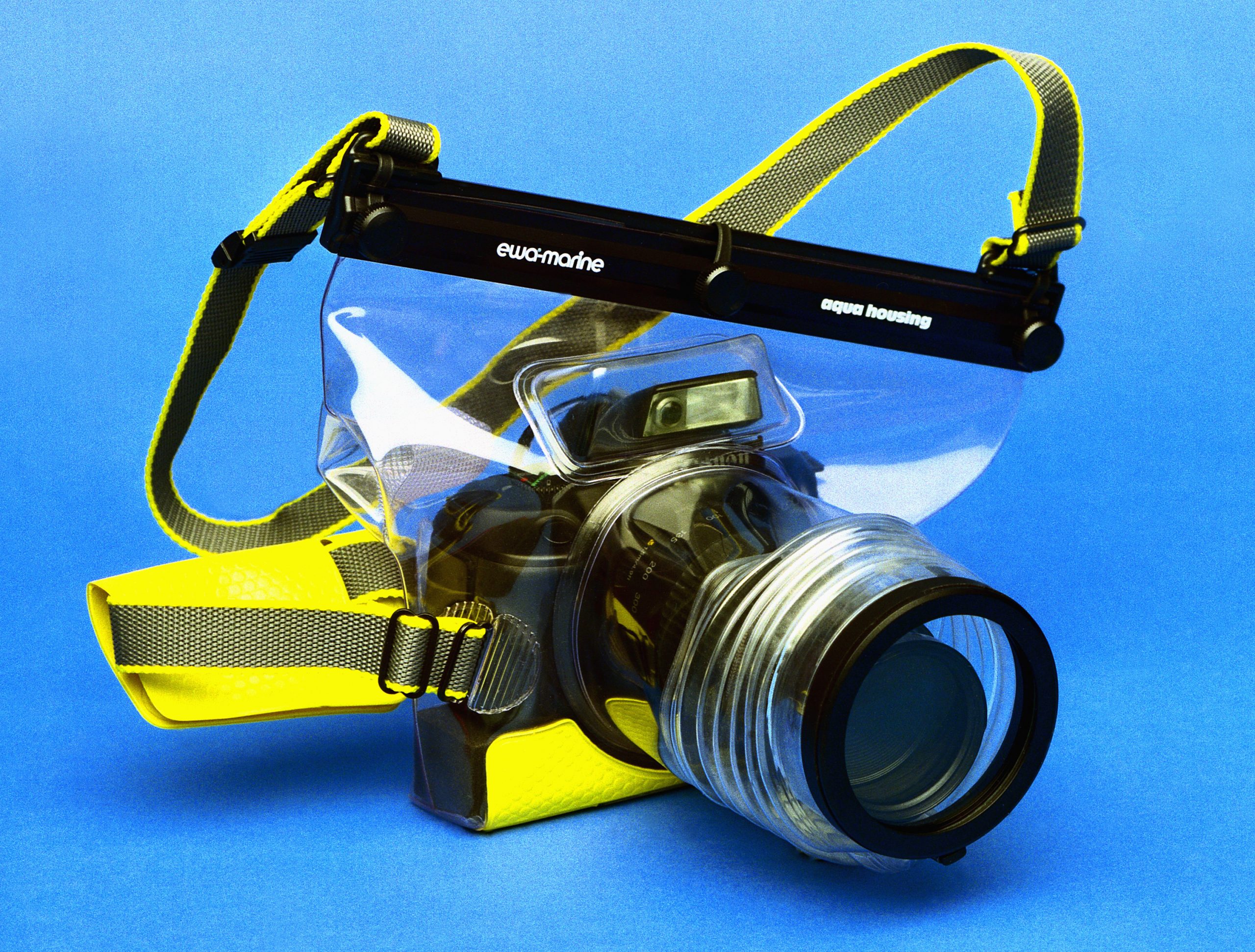

ewa-marine U-AZ

Underwater housing for compact, consumer SLR cameras

order code: U-AZ

The housing can be used on small boats, in the surf, while swimming, snorkeling or diving. It`s easy to operate the camera as its various components and buttons can be operated through the PVC.

The fact that the U-AZ can be used with up to 300mm lenses, makes it specifically interesting for canoeists and other out door photographers that want to take pictures of birds and other wild life while in or on the water. It is designed to fit almost all common SLR cameras on the market today, irrespective of the manufacturer or model. With this housing, a whole new world of applications opens up for your standard SLR camera: Inside the housing you can now take the camera safely canoeing, snorkeling or even diving, up to a depth of 20 m / 60 ft.

If the optional BF1 lead weight is inserted into the housing, underneath the camera, it becomes even easier to reach the maximum depth. Experienced photographers have confirmed, that the auto focus and flash both continue to function perfectly. As you descend, the air is pressed into the camera. Due to this, the pressure inside the housing will remain the same as the surrounding water pressure. (this is the reason why ewa-marine housings are so safe to use: implosions are impossible) Due to this, we have to start the dive with a suitable amount of air inside the housing. The foam pads supplied with the housing are part of this air "reservoir" and additional air should also be blown into the housing, via the valve at the rear, to ensure that the maximum potential volume is being utilized.

This is only one of a range of underwater SLR housings by ewa-marine.

Click, if you need help to find the right housing for your camera, lens and application.

The U-AZ is specifically designed for cameras with longer lenses what makes it interesting for canoeists and out door photographers. While it can also be used for scuba diving, for lack of a strong, external strobe, and because the camera's small, built in flash is to close to the lens, resulting in small, suspended particles in the water showing as  "snowflakes" in the picture, i.e. can not be used in most applications, the U-AZ is limited to 20m / 60ft. A depth where you also can still take pictures with ambient, natural light. Since underwater photography generally requires the use of wide angle or macro lenses and thus shorter lenses, the lens tubes on the housing is kept rather short.

Depending on your application but the following products offer a better solution:

  • U-A:Compact without a top mounted flash gun ideal for snorkeling.
  • U-AX: SLR with top mounted strobe for up to to 20m / 60ft dive depth. Offers better better illumination of the subject under poor light condition.
  • U AXP: SLR with top mounted strobe and up to to 50m / 150ft dive depth. Primarily for for scuba diving.

Designed specifically for consumer style digital dSLR, large mirrorless system-camera as well as the "old style" analog 35mm SLR cameras, the ewa-marine U-AZ underwater housing is manufactured from our special, double laminated PVC and has an integrated, optically neutral flat glass as a front port. With this housing you will receive a set of adapters that fit the  filter threads of the most popular lenses on the market today. By means of this adapter the camera is then docked into the housings front port, ensuring that the lens remains parallel and centered behind the front of the lens. Just as if it were a clear, neutral optical filter.

As many cameras in this category have a built in, pop-up flash we have added a "roof" to accommodate it in the housing. To fix the right hand near the shutter release, the housing has an adjustable wrist strap and a "Finger" to position the index finger right on the trigger.

It has a pair of non-corrosive and seawater resistant clamping rails which fit together for perfect sealing.They tighten by means of three screw knobs. There is also the practical, adjustable carry strap on the clamping rail.

Actually, it's not in a box at all. We sell this unit in a handy, yellow, nylon carry bag. This bag is ideal to store and transport your ewa-marine housing, it also helps reduce unnecessary packaging-waste and as such is part of our amain to help the environment.

In Addition to your housing and closing rail you will get the following with your new ewa-marine:

  • CA-Adapters(for 52mm, 55mm, 58mm and 62mm Filter thread)
  • sachet of Camera-Dry silica-gel
  • foam padding (can be removed to accommodate battery grip or weights)

Should you require a lost or broken part, please contact us via mail:

  • 306/3 closing rail
  • set of 3 knurled nuts for closing rail
  • foam padding U-A..-Series
  • SF90 front port replacement (has to be replaced in factory)
  • puncture repair (has to be repaired in factory)
  • yellow nylon bag

Canon:
EOS 10D 20D 20Da 30D 40D 50D
EOS 100D 300D 350D 400D 450D 500D 550D 600D 650D 700D 750D 760D
EOS 1000D 1100D 1200D 1300D
Digital Rebel XT XTi XSi T1i T2i T3i T4i T5i T6i T6s SL1 XS T3T5
Kiss N X X2 X3 X4 X5 X6i X7i X8i F X50 X70
analog EOS: 1N 3 5 10 30 50 100 300 500 600 620 630 650 700 750 850 888 3000 5000 IX RT Elan

Nikon
D3000 D3100 D3200 D3300
D5000 D5200 D5300 D5500
D7100 D7200
D40 D40x D
50 D60 D610
D70 D70s D80 D90
F100 F401 F401S F401X F50 F501 F55 F60 F601 F65 F70 F75 F80 F801 F801S
N2020 N4004 N4004S N401X N50 N55 N60 N601 N65 N70 N75 N80 N801 N801S
Nikon DF
Pronea 6i 600i S

Fujifilm
Finepix
HS10 HS20EXR HS30EXR S100FS S200EXR
S100FS S200EXR S205EXR S4000 S8100 S9500 S9600
X-T1 X-S1 X-T2

Kodak
EasyShare Z710

Konica / Minolta
Alpha Series
Dynax 5D
Dynax Series
Maxxum Series

Olympus
E-300 E-330 E-400 E-410 E-420 E-450 E-500 E-510 E-520 E-620
OM-D E-M5 E-M5 Mark II
OM-D E-M1 OM-D E-M10
OM-101 OM-707 OM-77 OM-88

Panasonic Lumix
DMC-G1 G2 G3 G5 G6 G7 G10 G70 G81
DMC-GH1 GH2
DMC-GH3 GH4 GH5
DMC-L10

Pentax
*istDL *istDL2 *istDs
K-3 K-3II K-m K-r K-x
K100D K10D K110D K2000 K2000 K200D K20D K500
X90
XG-1

Samsung
GX-1L 1S 20
NX1 NX5 NX10 NX11 NX20

Sigma
SA-7 SA-9

Sony
A7
α7 α7R α7S α7RII
Alpha 560
Alpha7K
Alpha7R
Alpha9
Alpha A100 A200 A230 A290 A300 A330 A350 A380 A390
SLT-A33 A37 A55 A57 A58 A65 A77 A99
